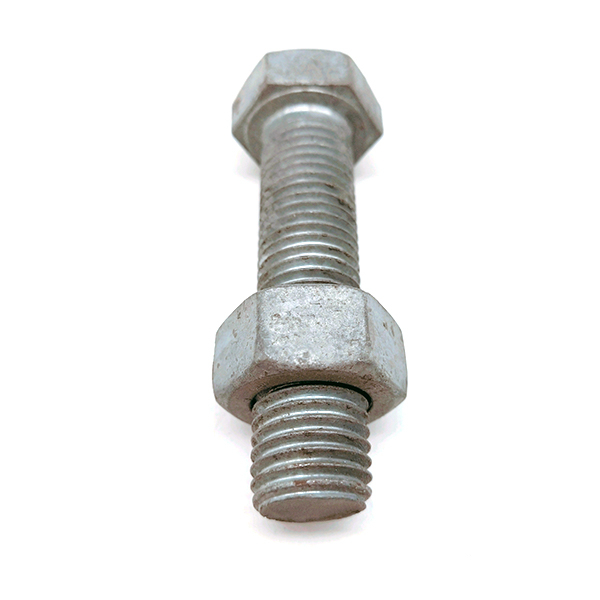

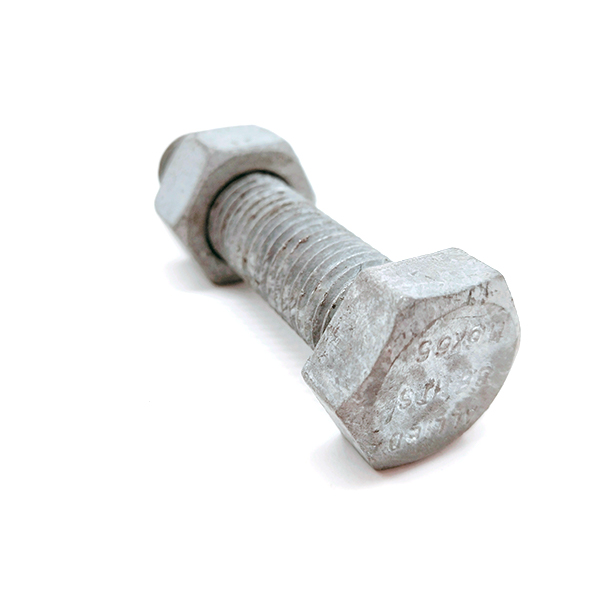

Grade 5.8 M10 M12 M14 Carbon Steel HDG Hex Bolt And Nut for Power
A bolt is a form of threaded fastener with an external male thread. Bolts are thus closely related to, and
often confused with, screws. A hex cap screw is a cap screw with a hexagonal head, designed to be driven
by a wrench (spanner).
| 1:Metric Hex BOLT:GB/T 3098.1-2010，ISO898.1-2009 | ||||||||||
| CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
| SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
| COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
| ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K | 35ACR | 10B35 | AISI 4140 | ||||
| HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
Application:
Environmental protection equipment, medical equipment, communications equipment, electric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, Buildings, machanical equipments, bridges, tunnels, high speed railways etc
Grade 5.8 M10 M12 M14 Carbon Steel HDG Hex Bolt And Nut for Power
A bolt is a form of threaded fastener with an external male thread. Bolts are thus closely related to, and
often confused with, screws. A hex cap screw is a cap screw with a hexagonal head, designed to be driven
by a wrench (spanner).
| 1:Metric Hex BOLT:GB/T 3098.1-2010，ISO898.1-2009 | ||||||||||
| CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
| SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
| COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
| ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K | 35ACR | 10B35 | AISI 4140 | ||||
| HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
Application:
Environmental protection equipment, medical equipment, communications equipment, electric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, Buildings, machanical equipments, bridges, tunnels, high speed railways etc
