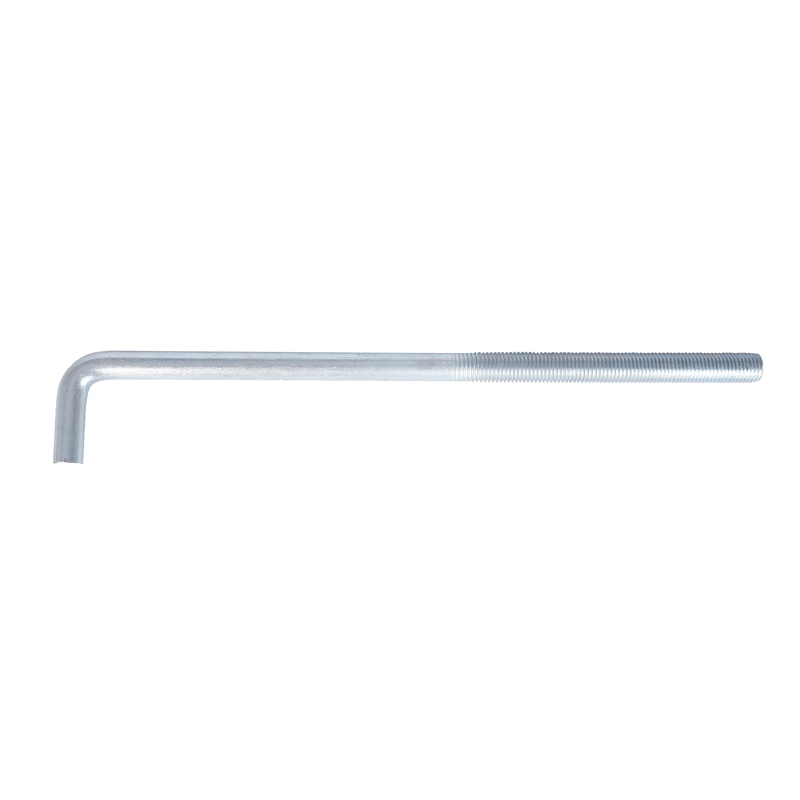

Grade 4.8/6.8/8.8 Carbon Steel Zinc Plated L Type Bolts
| 1:Metric Hex BOLT:GB/T 3098.1-2010，ISO898.1-2009 | ||||||||||
| CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
| SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
| COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
| ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K | 35ACR | 10B35 | AISI 4140 | ||||
| HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
| 2:ASME Hex BOLT:SAE J429 | ||||||||||
| CLASS | G1 | G2 | G5 | G5.2 | G8 | SK | ||||
| SIZE | ALL SIZE | ≦3/8 | >3/8 | ALL SIZE | ||||||
| COMMON MATERIALS | 1008 ~ 1015 ML08AL SWRCH8A~ SWRCH15A | 1017 | C(0.28~0.55) 10B33 or MEDIUM CARBON STEEL | C(0.15~0.25) or 10B21 | 10B33 or SCM435 | SCM435 | ||||
| HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
| Product Name | Grade 4.8/6.8/8.8 Carbon Steel Zinc Plated L Type Bolts | ||||||
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
| Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L | ||||||
| Stainless Steel 304 316 316L GrB8 B8M. Carbon Steel | |||||||
| Finishing | Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG) phosphorization, Black Oxide,Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated | ||||||
| Customized Products Lead time | Busy season:15-25days,Slack seaon:10-15days | ||||||
| Stock Products |
stainless steel screws, Example: ISO7380,DIN7981,DIN7982,DIN916,DIN913,DIN7985,DIN912 | ||||||
| Free Samples for standard fastener | |||||||
| For more information visit: | |||||||
